18"

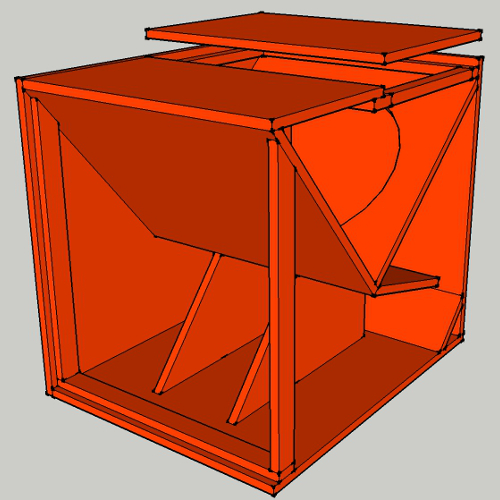

es18pbh
Recommended Woofers
P Audio C18 elf
PD184
Celestion FTR18-4080F
PD186 (although this may not fit)
Fane Colossus 18B600
Fane Colossus 18XB
Beyma 18P1000
Eminence Magnum 18LF
Eminence Magnum 18HO
Eminence Omega pro 18
B&C 18PS100
B&C 18PZB100
B&C 18TBX100
qts from 0.35 to 0.25
fs from 34 to 36
mms from 195g to 175g
fs from 25 to 32
bl from 21 to 27
PD184
Celestion FTR18-4080F
PD186 (although this may not fit)
Fane Colossus 18B600
Fane Colossus 18XB
Beyma 18P1000
Eminence Magnum 18LF
Eminence Magnum 18HO
Eminence Omega pro 18
B&C 18PS100
B&C 18PZB100
B&C 18TBX100
qts from 0.35 to 0.25
fs from 34 to 36
mms from 195g to 175g
fs from 25 to 32
bl from 21 to 27
Description
Its a half of an USB bin.
The ES18PHB bin is a high efficiency, high power bass bin designed for general PA use and raves. It use a 18 driver in a band-pass horn configuration; that is, it has a short horn which gives it a high efficiency over 80hz, and a band-pass action due to its large rear and front chambers which allow for a shallow roll off extending sub bass response.
The ES18PHB is an extremely efficient bass bin, with a very clean solid sound without any honky peaks or distortions. It works great as a kick bin above subs (like Labs) but also on its own.
Over damped design for better transient response.
Remember to invert the polarity of the driver to keep the phase.
Compact box dimensions.
The ES18PHB bin is a high efficiency, high power bass bin designed for general PA use and raves. It use a 18 driver in a band-pass horn configuration; that is, it has a short horn which gives it a high efficiency over 80hz, and a band-pass action due to its large rear and front chambers which allow for a shallow roll off extending sub bass response.
The ES18PHB is an extremely efficient bass bin, with a very clean solid sound without any honky peaks or distortions. It works great as a kick bin above subs (like Labs) but also on its own.
Over damped design for better transient response.
Remember to invert the polarity of the driver to keep the phase.
Compact box dimensions.
